How to Make a Clap-Clap on / Clap-Clap Off Switch Circuit

How to Make a Clap-Clap on/Off Switch



In this article, we show you how to make a simple clap switch project. This is a circuit that every one of us starts to know about electronics, but sadly 50% of us fail to build it our own.
And also we try to make it first time we face so many difficulties. Why these problems are arriving for such a small circuit? Because they don’t have correct guidance at its receiver end. In this article, we try to show you how to make a clap switch without any fault corrections.



Today we introduce two simple clap switch circuits.  The first one is a simple transistor-based circuit and second one is advanced mode, it can be also used to control any AC equipment at your home.



 Basic working of clap switch

Clap switch is a remote control system, it can control any electrical appliance at your home. Activation of a clap switch is not only with a clap, but also when we produce a good punchy sound.



The simple working principle of a clap switch is when the microphone converts sound energy into electrical voltage, then this converted voltage is amplified and it results for the activation of the relay.

Transistor clap switch

Clap-Clap on / Clap-Clap Off Switch Circuit
Clap-Clap on / Clap-Clap Off Switch Circuit



































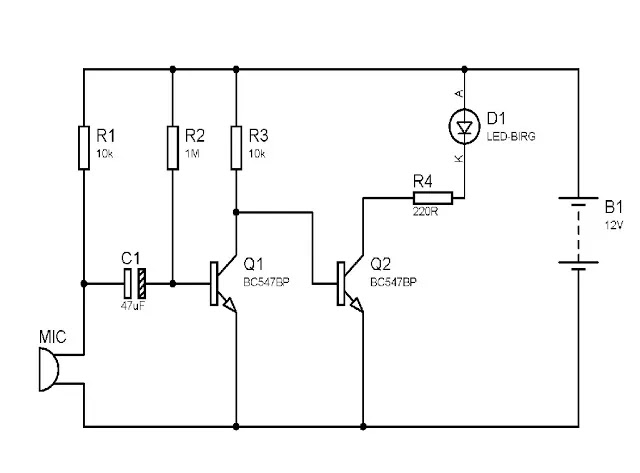

This is a simple and basic circuit.  You wish to make a clap switch without full knowledge, you can choose this circuit. There is only two components in this circuit. When ever we clap, the sound will produce and this produced sound is taken into the mic and it will convert into volt, then this voltage will passed into the base of the transistor. The base voltage of the transistor is above 0.7 volts, so it will become active and follow-through current.





Components Value
Transistor BC547 2
Resistor 10k 2
Resistor 1 M 1
Resistor 220 ohm 1
Capacitor 47uf 1
led 1
Battery 12v 1
mic 1


Clap Switch using 555 and 4017



How to Make a Clap-Clap on / Clap-Clap Off Switch Circuit
How to Make a Clap-Clap on / Clap-Clap Off Switch Circuit

working of Clap Switch using 555 and 4017



Mainly this project is based on transistor, op-amp 741, and CD4017 IC. The microphone converts sound wave into electrical volt and it passed into the inverted input of the op-amp and then signal become amplified by an op-amp.



R3 is used to control the sensitivity of the microphone and R1, R2, and VR1 Resistors are used for adjusting the sensitivity of the op-amp.



After the amplification process completed, it will be passed through pin number 14 of the IC CD4017. When pin 14 becomes high, the output of the CD4017 becomes high, but they are only needed for the required outputs.



This clap switch circuit has 2 outputs, one for the led indication and another one to activate the relay.



We are taken Q1 and Q2 outputs and the 3rd pin is connected into the MR pin of CD4017 for to disabling others outputs.



Value
22k 1
10k 2
1k 4
10k 1
Cd4017 1
741(opamp) 1
1n4007 1
Bc547 1
1
1
